Architecture Overview
System Components

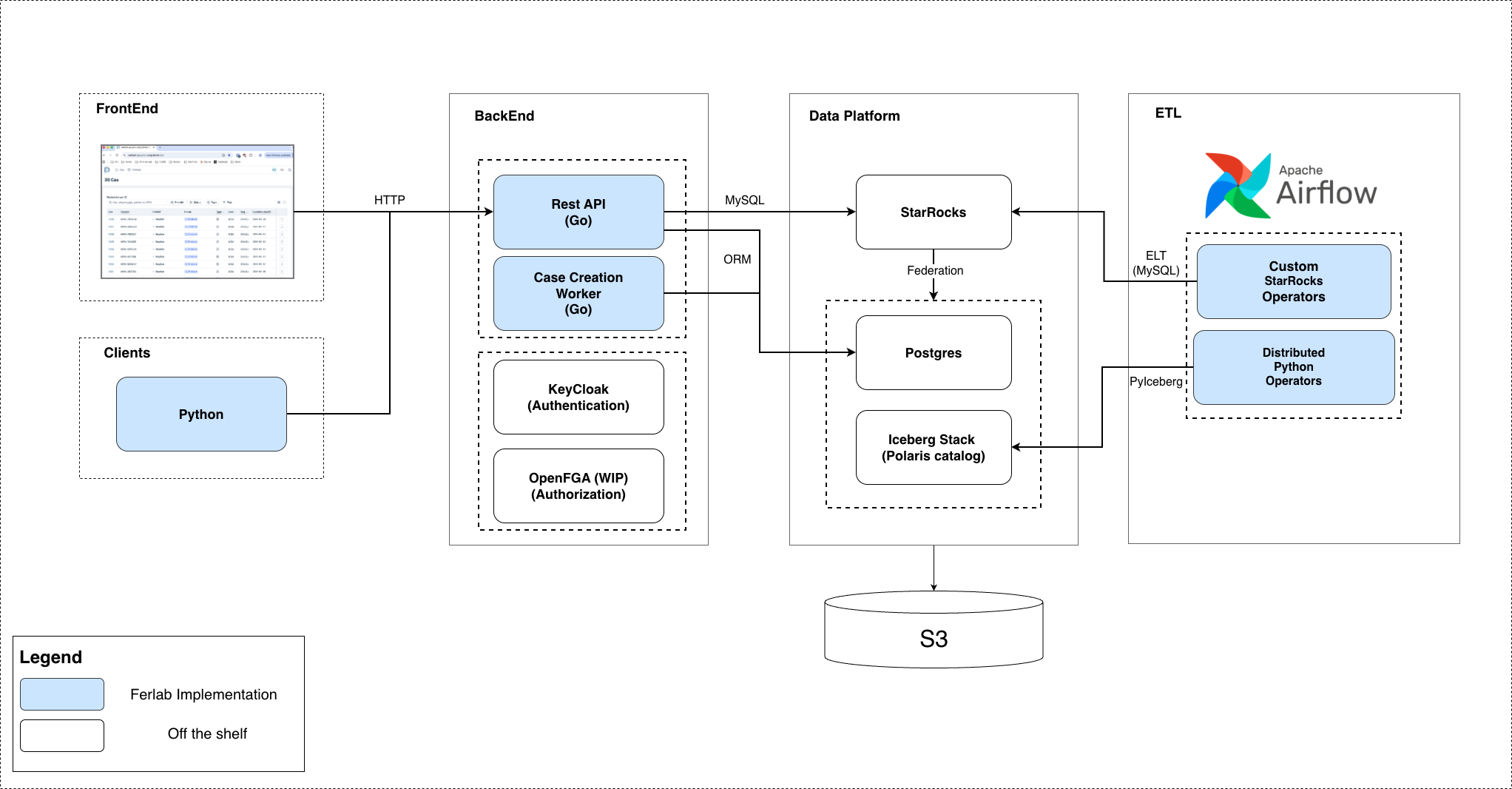

The diagram below provides a high-level view of the Radiant system and its core architectural components:

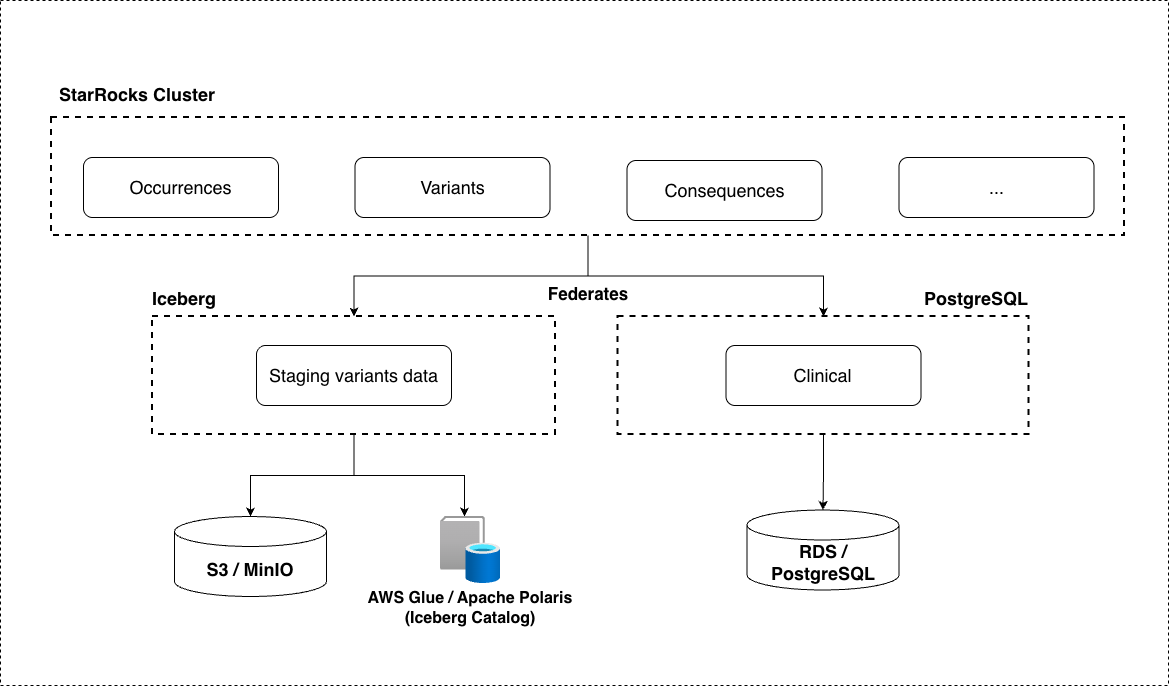

Data Architecture
Clinical Data Ingestion
Clinical data, such as case records, can be managed directly via the Case Creation API.
This allows users to self-serve and register new cases or update existing ones.
All clinical data is persisted in PostgreSQL.
For details about the case creation workflow, refer to the Case Creation section below.
Variant Data Ingestion

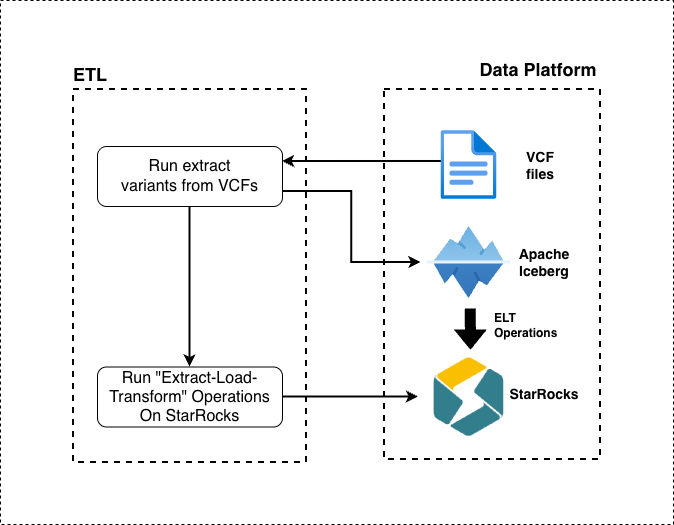

Variant data is processed using an ETL pipeline that extracts genomic information from VCF files and loads it into Apache Iceberg.
Data is then imported into StarRocks using a "Extract-Load-Transform" (ELT) model that runs import queries, pulling records from the federated Iceberg catalog.
StarRocks operates in shared-data mode, with data stored in an S3-compatible object storage backend.
Case Creation

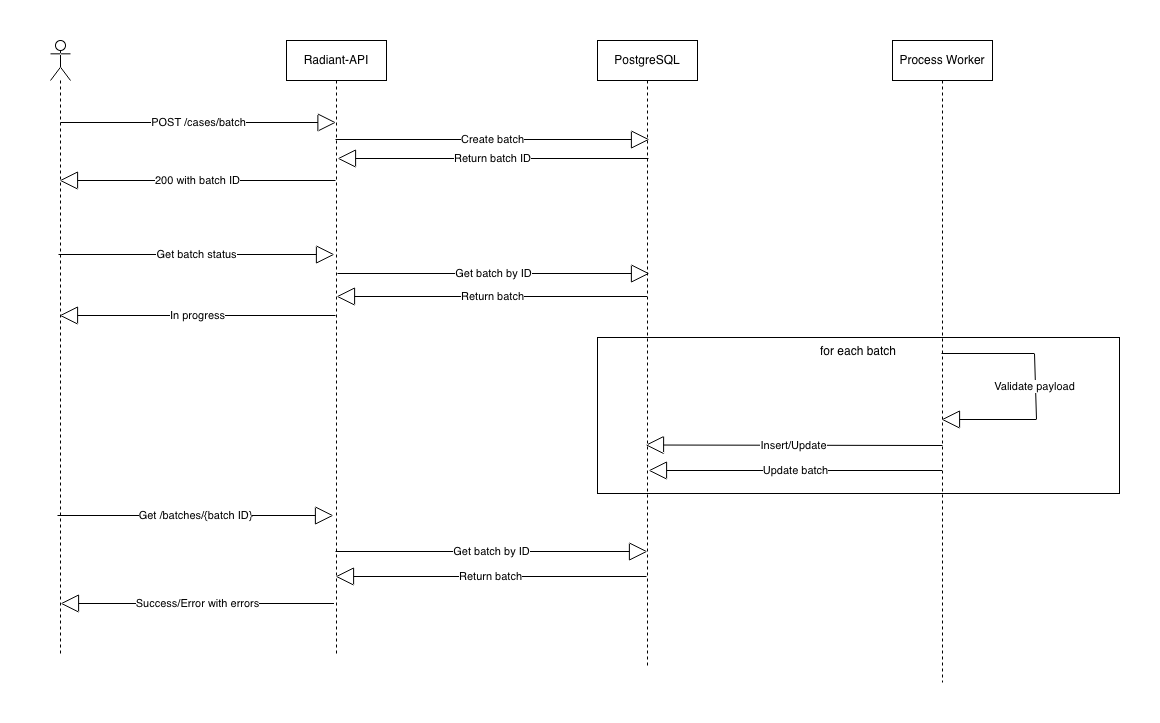

Case creation is managed by two main components — an API service that receives requests, and an asynchronous worker that processes them in the background:
Example payloads and API usage samples are available here:
https://github.com/radiant-network/radiant-portal/tree/main/backend/examples
All case creation operations are asynchronous to ensure smoother handling of high-volume data submissions.
Repositories
All official Radiant repositories are hosted in the Radiant-Network GitHub Organization.
| Repository | Description | Link |
|---|---|---|
| Architecture (ADRs) | Architecture Decision Records and design documentation | architecture |
| Portal | Main web portal and backend API services | radiant-portal |
| ETL Pipeline | Data extraction, transformation, and loading logic | radiant-portal-pipeline |
| Sandbox Environment | Local development and testing environment | radiant-portal-sandbox |
| Python Client Examples | API client scripts and usage examples | radiant-python-client-example |
| StarRocks Deployment | StarRocks cluster configuration and deployment scripts | star-rocks |
| Terraform Deployments | Infrastructure automation and cloud deployment definitions | radiant-portal-deployment |
